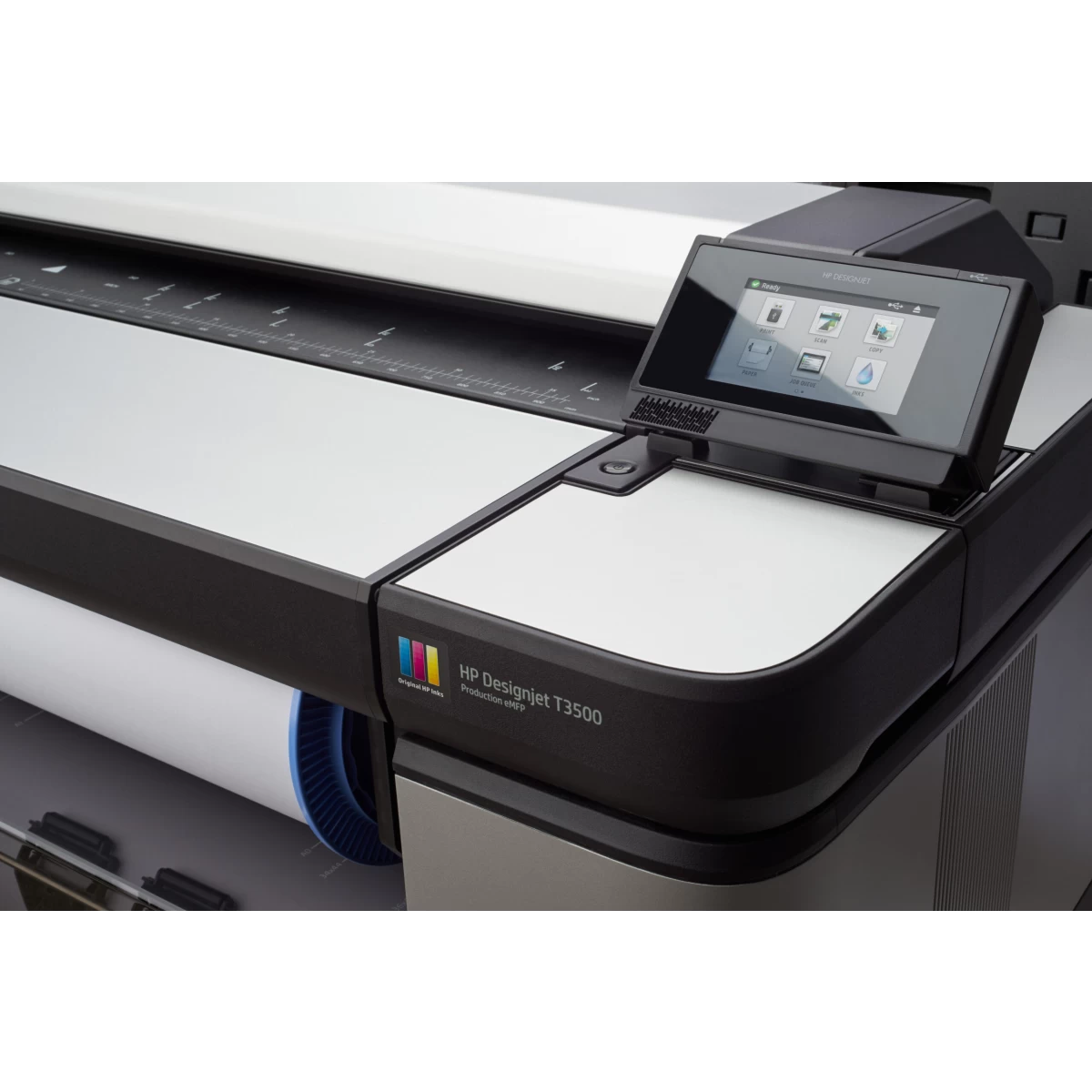

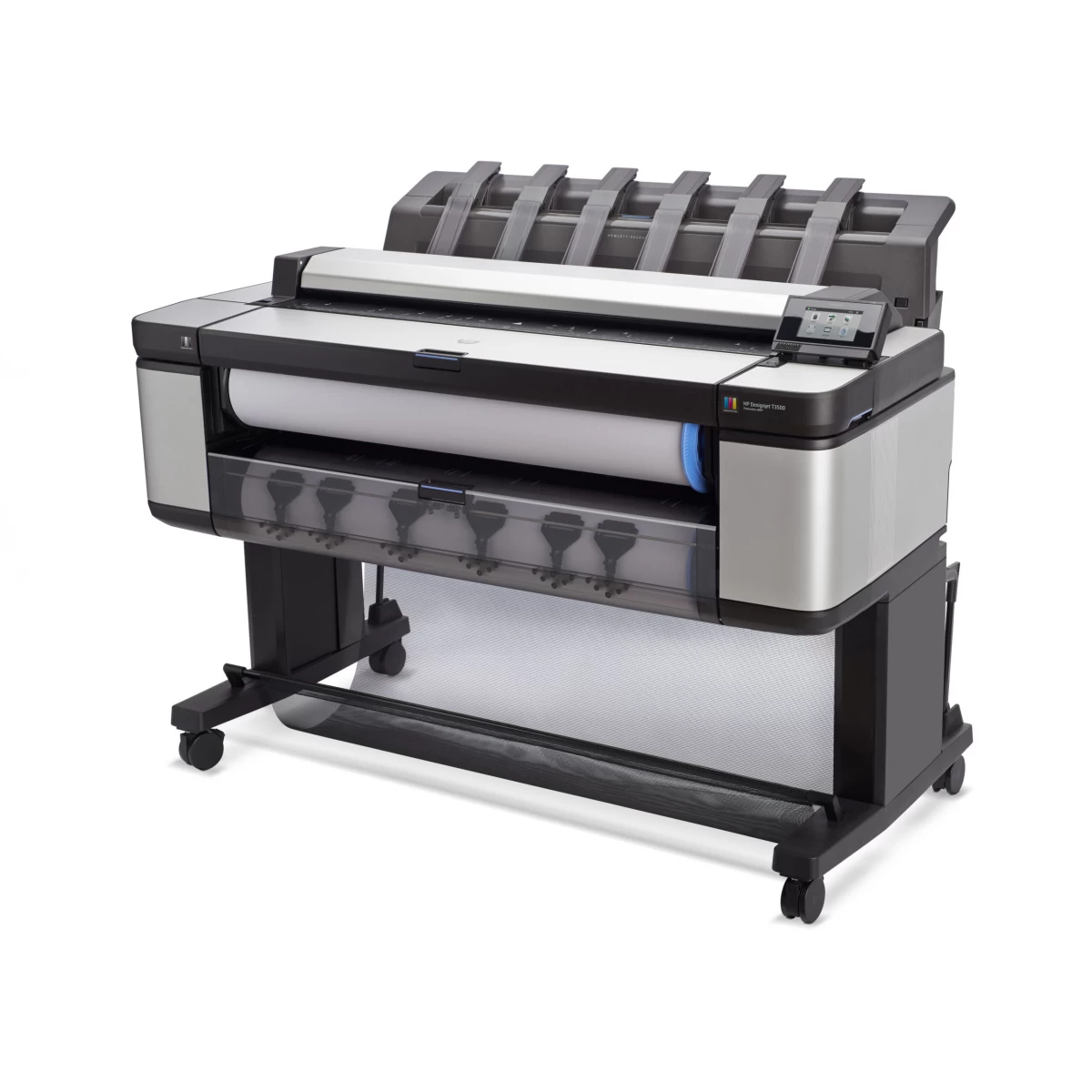

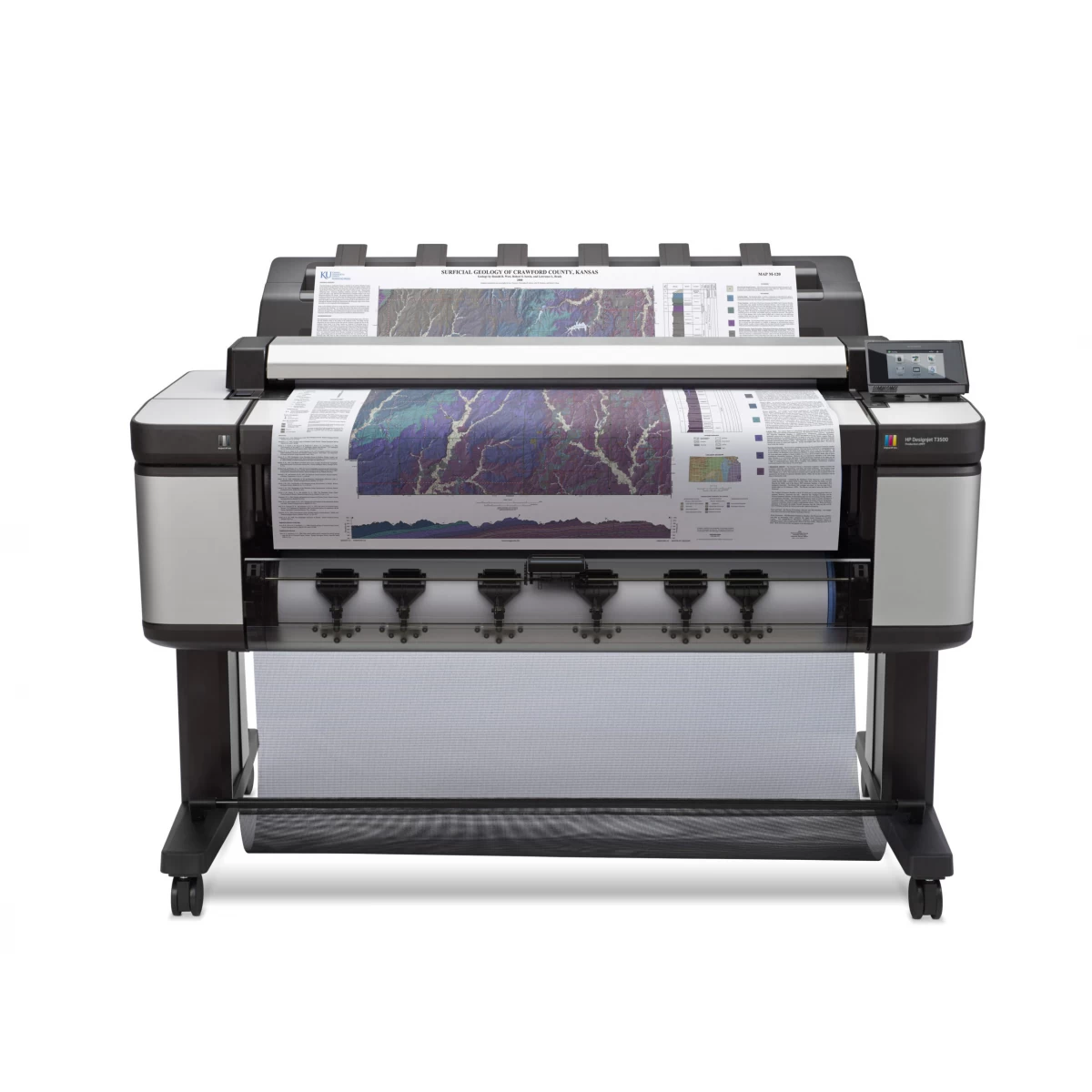

HP DesignJet T3500 Production eMFP (914mm)

The HP DesignJet T3500 Production eMFP improves productivity offering the fastest multi-function printer on the market for black-and-white and color needs.


Play Video
Play Video
Play Video


All your workflow needs in a high-productivity MFP

Be the fastest – print A1-size pages in 21 seconds with dark blacks, neutral greys, and vivid colours.
Print out your first page right away thanks to ultra-fast processing and zero warm-up time.
Copy and scan quickly with advanced features and efficient workflow tools – presets, batch scanning, multipage PDFs, and scan to email.
Stay organised and avoid clutter – the integrated 100-page stacker delivers prints and copies neatly collated.

A production printer for unattended, low-cost use

Print your black-and-white drawings at the same cost per page as comparable black-and-white LED MFPs.
Operate unattended thanks to two heavy rolls of up to 200 m (650 ft) and a total ink capacity of 1800 ml.
Built for high-volume printing – rely on a robust design to fulfil the most demanding jobs.
Manage projects and control costs effectively, using embedded professional accounting features.

Built for rigorous IT demands and top security

Minimise device-management tasks and costs, using the HP DesignJet Universal Print Driver.
Manage your fleet with ease, while saving time and helping to reduce costs, thanks to HP Web Jetadmin.
Protect and manage confidential jobs securely – retrieve documents at the printer with a personal PIN.
Safeguard confidential information, using a self-encrypting HDD with AES-256, Secure Disk Erase, and IPsec.

Printing Speed

Line drawings: 21 sec/page on A1/D, 120 A1/D prints per hour

Print resolution

Up to 2400×1200 optimized dpi

Print technology

HP Thermal Inkjet

Margins (top×bottom×left×right)

Roll: 3×3×3×3 mm (0.12×0.12×0.12×0.12 in) Sheet: 3×22×3×3 mm (0.12×0.87×0.12×0.12 in)

Ink types

Dye-based (C, G, M, pK, Y); pigment-based (mK)

Ink cartridges

6 (cyan, gray, magenta, matte black, photo black, yellow)

Media Handling

Input: two automatic front-loading roll feeds; smart roll switching; rolls up to 200 m (650 ft) long each and 180 mm (7.1 in) of diameter; sheet feed Output: integrated output stacker (from A4/A to AO/E, with up to 100 A1/D-size capacity); media bin; automatic cutter Scanner: straight-through scan paper path for sheet and cardboard originals

Media Size

Rolls: 279 to 914 mm (11 to 36 in) Sheets: 210×279 to 914×1219 mm (8.3×11 to 36×48 in) Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Media Thickness

Up to 0.5 mm (19.7 mil)

Minimum line width

0.02 mm (0.0008 in) (HP-GL/2 addressable)

Guaranteed minimum line width

0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E))


Line drawings, Renderings, Presentations, Maps, Orthophotos

Connectivity interfaces

High-Speed USB 2.0 certified host connector. Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4o only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, FTP, WS Discovery, Embedded Web Server(HTTP, HTTPs), IPSec, SMTP (e-mail), Raw IP printing (9100, 9101, 9102), LPD, IPP, WS print, NTLM, NTLM v2, SSL/TLS, 802.1X authentication (WEP, WPA, WPA2, LEAP, PEAP, EAP-TLS)

Dimensions (w×d×h)

1400×784×1109 mm (55.1×30.9×43.7 in)

Package dimensions (w×d×h)

1502×780.5×804 mm (59.1×30.7×31.7 in)

Memory & Storage

Intel Core i5M-260 processor, 128 GB (virtual), 9 500 GB hard disk (AES-256 encrypted, FIPS 140-2 Level 2 certified)

Print languages (standard)


Print languages (optional)

Adobe PostScript 3; Adobe PDF 1.7

Drivers (included)

HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit. Compatible with HP Designjet Universal Print Driver for HP-GL/2 and HP Designjet Universal Print Driver for PS (with PostScript/PDF Upgrade Kit)

Scan resolution

Up to 600 dpi

Scan speed

Color: up to 6.35 cm/sec (2.5 in/sec) Grayscale: up to 19.05 cm/sec (7.5 in/sec)

Maximum scan size

Size: 914×8000 mm (36×315 in) (JPEG) 914×5000 mm (36×197 in) (PDF) 610×15, 000 mm (24×590.5 in) (TIFF)
