Graphtec F-MARK2

• Continuous, HAND-FREE sheet media loading & processing
• Dedicated software ensures ACCURATE alignment
• CCD CAMERA quickly scans 2-point registration marks
• CONTOUR AND PERFORATED CUTTING of printed graphics
• Add additional sheets to the feeder WITHOUT RESENDING the job

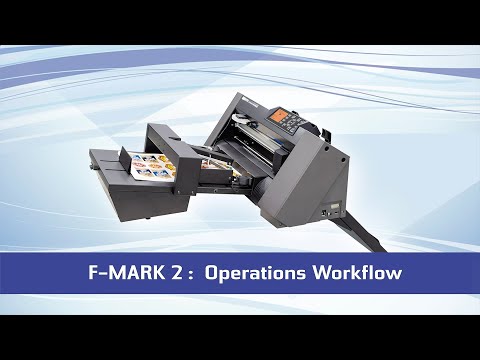

The F-MARK2 Automatic Sheet Feeder Unit, which includes the Graphtec CE7000-40 cutter, is designed to automatically feed and contour cut media size up to 330 x 228 mm without the need for an operator.  An arm with air suction cups lifts the media from the supply tray and places it in the cutter.  Included Software and CCD Camera accurately align media for contour / perforation cutting of pre-printed graphics – efficiently freeing up labor to work on other tasks.  Once completed, each sheet neatly falls into the Exit Tray. Additional sheets of the same design can be loaded during cutting without resending the job from a computer, further enhancing productivity.

It can handle up to 200 sheets (depend on the thickness) of media in a continuous cycle but with the ability to add further sheets as required without interrupting the cutting process.  This is a capability that we consider sets the F-Mark2 Automatic Sheet Feeder apart from any comparable sheet-fed system.

450 Grams of down force enable users to produce small and medium size runs of: labels, business cards, heat transfer apparel, and more.  Using Adobe Illustrator and CorelDraw EPS file types, simply add registration marks to your design and import to the iMark Plus Software for fast, high quality results.

INCREASE PRODUCTION EFFICIENCY BY AUTOMATIC RELOADING

The auto sheet feeder reloads the media to the cutting plotter automatically.  The cutting process is executed repeatedly with replacing the media.  It enables to significantly improve productivity in cutting a large number of media with the same patterns.  The following steps are automatically repeated continuity until specified number of copies are made.
